Bafgh - Mashhad Railway



Employer: Construction & Development of Transportation Infrastructure Co.

Province: Yazd

Date of Completion: 2002(Lot17,18,19), 2004(Lot11,12), 2005(Lot13), 2008(Lot4)

Top Specifications:


Length:
190 km (Lot4)
31 km (Lot11)
25 km (Lot12)
38 km (Lot13)
32 km (Lot17)
29 km (Lot18)
34 km (Lot19)

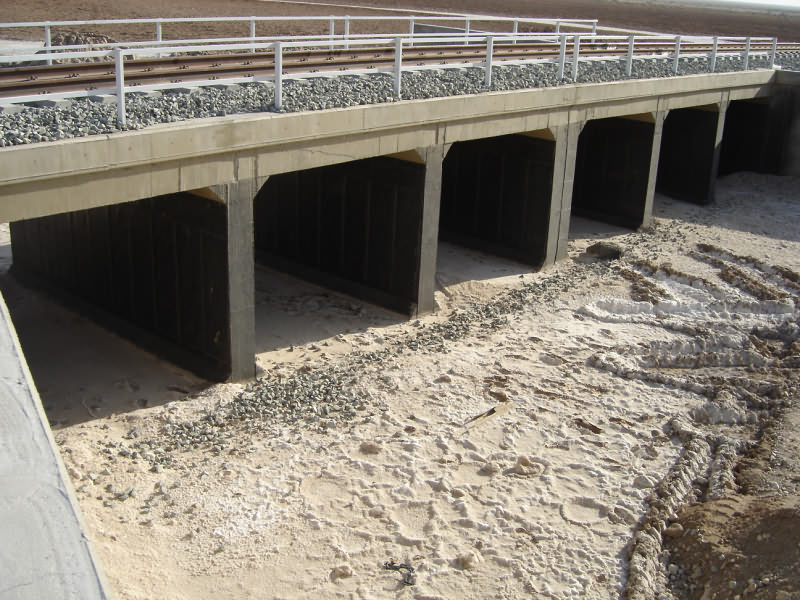

Bridges:
680 (Lot4)
179 (Lot11)
60 (Lot12)
190 (Lot13)
64 (Lot17)
101 (Lot18)
92 (Lot19)

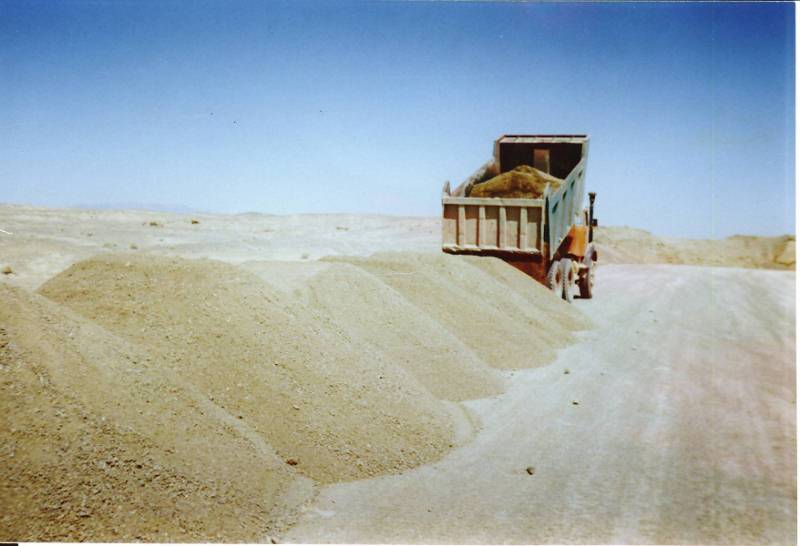

Cut&Fill Volume:
8,400,000 m3 (Lot4)
3,100,000 m3 (Lot11)
1,800,000 m3 (Lot12)
3,700,000 m3 (Lot13)
1,200,000 m3 (Lot17)
1,400,000 m3 (Lot18)
1,400,000 m3 (Lot19)

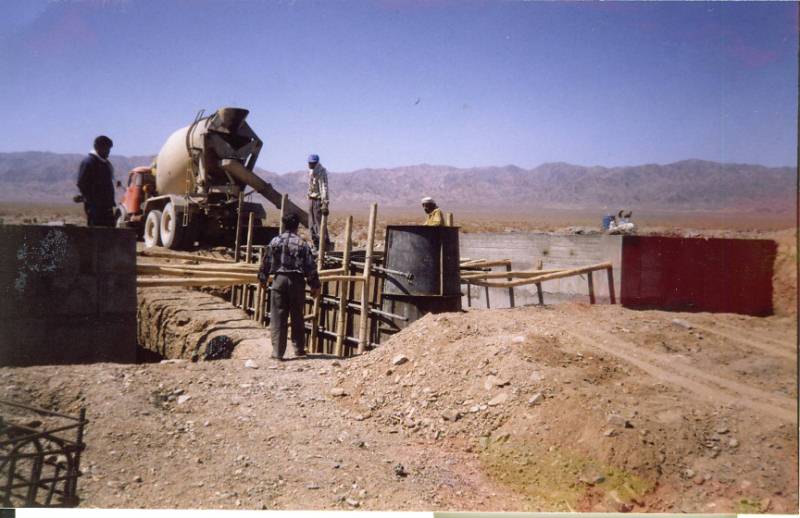

Concrete Volume:
165,000 m3 (Lot4)
36,000 m3 (Lot11)
21,400 m3 (Lot12)
48,000 m3 (Lot13)
24,000 m3 (Lot17)
25,000 m3 (Lot18)
28,000 m3 (Lot19)

Brief Description:


Bafgh-Mashhad rail way is the last section of connection road of border city of Sarakhs located in between Torkamanestan and Iran, toward Bandarabas city in south Iran. Construction of Sarakhs-Bandarabs rail way is one of the important aims of the Road and Railway Ministry. Defined scope of work for this project includes detaied design of the construction and supervision.

Gallery:
